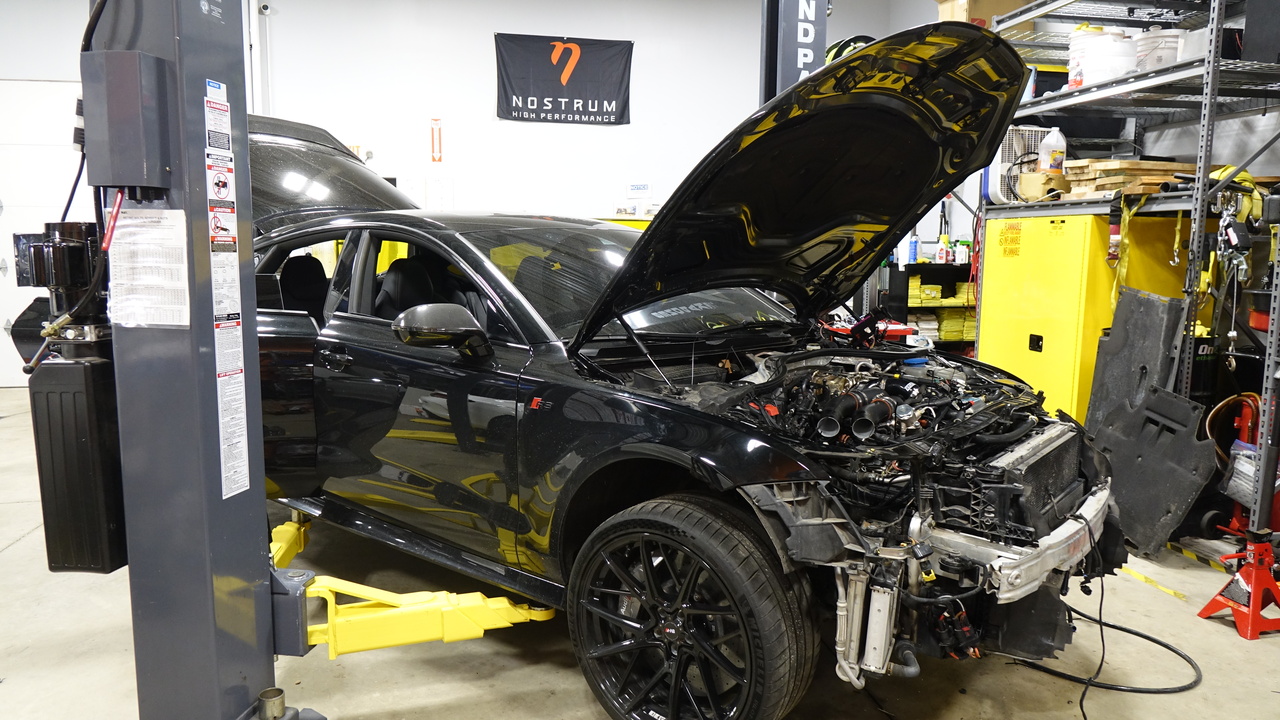

Installation Services of KyleTunedIt Ultimate Water Meth System on Audi C7 RS7 performed by Nostrum High Performance.
NOTE: Installation is significantly more complicated than stated in the KyleTunedIt installation instructions. High majority of the re-assembly did not function as described in the KyleTunedIt installation instructions, which were originally developed for an S8. Therefore, this installation is specific to the C7 RS7 and requires significantly more labor and special materials/fabrication due to the tight package constraints of the front cooling module & engine package of the C7 RS7.
Total Labor Hours: 46hrs
List of special items (not in the instalation guide or kit by KyleTunedIt) for C7 RS7:
-Bumper / front fascia removal
-Headlight removal
-Radiator removal
-AC condensor removal
-intercooler heat exchanger radiator removal
-Core (front cooling module) support removal
-Bumper brace and brackets removal
-Intercooler assembly / manifold removal
-PCV seperator removal
-EGR crossover tubing modification (stock does not fit after WMI kit install)
-Coolant crossover removal & modification (stock does not fit after WMI kit install)
-Blow off valve modfication (does not fit after WMI kit install)
-Backseat removal & ECU removal for wiring (no air suspension on vehicle)
-Rear cargo floor reinforcement (to withstand the fully laden weight of the meth tank without damage)
-Special bracket and manifold for solenoid mounting (original kit instalaltion location not possible)
Included Materials:
- sheet plate and hardware for tank floor reinforcenment (aluminum)
- new fabricated hose for egr relocation, parts
- Blow off valve relocation, modification
- new fabricated tube for Coolant tube relocation, parts
- modified EGR routing, egr elbows
- replacement Gasket for intercooler (Audi recommended replacement)
- Audi engine coolant, gaskets, hardware (Audi recommended replacement)
