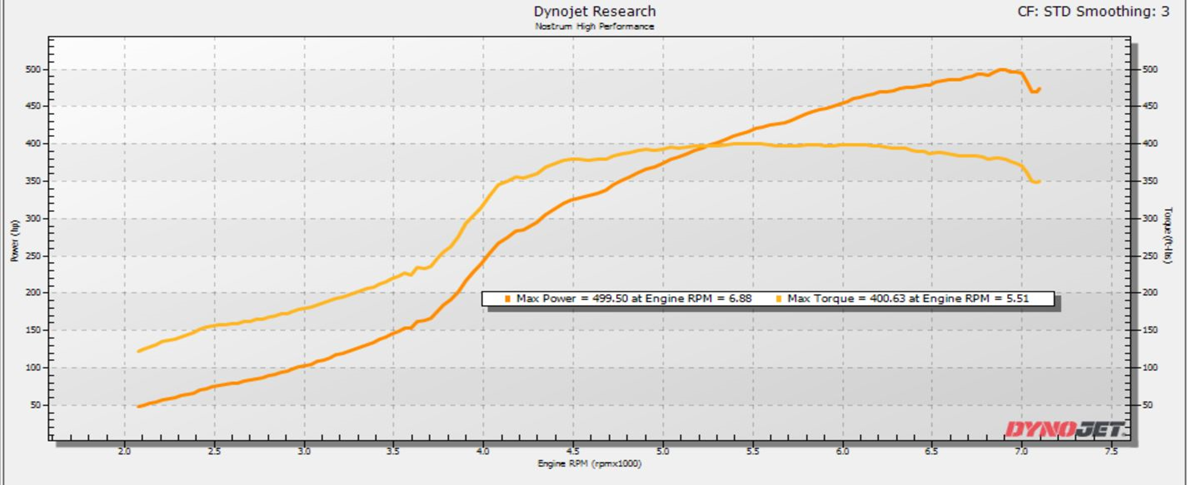

High flow fuel injectors for the EA113 are here! Our injectors flow 40% more fuel than the stock MK6 Golf R (EA113 HDEV1) injectors. That additional fuel flow allows for a significant increase in horsepower, with proper tuning. We estimate that these injectors will flow enough fuel (fuel capacity) to make nearly 570 wheel horsepower on gasoline and 460 on pump e85.
- High flow replacement injector for HDEV1 injector outline (with large spigot o-ring).
- +40% increase in fuel flow (100 bar static) over stock <12.79 g/s stock vs 17.9 g/s >
- E85 compatible
- Dynamically batched sets
- 180 bar maximum recommended operating pressure, 50 bar higher than stock (requires fuel rail pressure relief changes to operate above 130 bar stock pressure relief)
- Serialized & 2D coded for traceability.

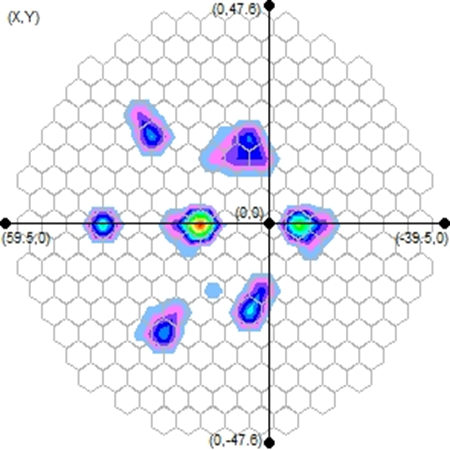

- Spray Pattern:
These injectors are built from our exceptionally successful EA888 g1/g2 injectors and come pre-assembled & tested with our EA113 custom o-ring/backing ring package, harness adapter, and injector spacer. Inside the box, you will find everything you need to get your new injectors installed quickly. When you are ready to tune, we have injector tuning data available for your dealer or tuner. Being that everything is installed like a factory part, there’s no need to worry about secondary injection controllers, filling meth tanks, clogged meth injectors, or any of the other complex solutions people use to squeeze more power out of these vehicles. Additionally, these injectors are operating with all the OEM ECU’s engine management system diagnostics and safety functions – resulting in a much happier and responsive system!
Every Nostrum manufactured part is backed by a limited lifetime warranty. Our products are comprehensive solutions that come complete with everything you need inside the box, including detailed installation instructions. Tuning guides are also available for your dealer or tuner. We have customer service and calibration engineers on staff to provide you with any support that you may need, from installation to tuning.
What sets Nostrum apart:
- 40% Larger than stock EA113 injector (see part numbers)
- Fully preassembled with spacers and adapter harness
- Ethanol Compatible
- Replacement spray pattern fully compatible with EA113
- Every preassembled injector is leak tested, tested statically, and dynamically to ensure best quality product and set batching.
Application list:
- 2010-2012 VW Mk6 Golf R (06F906036F)
- 2006-2008 Mk5 Golf GTI, Jetta, Passat (06F906036, 06F906036A, 06F906036D)
- 2006-2008 Audi A3 8P (06F906036, 06F906036A, 06F906036D)
- 2005-2009 Audi A4 B7 (06F906036, 06F906036A, 06F906036D)
- 2008-2009 Audi TTS (06F906036F)
- Excludes special edition Pirelli (BYD engine) with special fuel rail
- Interchange part number: 06F906036F
- Please contact us for clarification because Volkswagen-Audi injector and engine code complexity is insane.
